Product Overview
* Controlled by a technologically advanced microprocessor guaranteeing high reliability
* Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
* USB port and monitor software is designed to manage UPS status via PC (Optional)
* Coaxial cable line / modem / phone protection (Optional)
* Built-in DC start function enables UPS to be started without AC power supplied
* Constant current, constant voltage battery charger (CCCV Battery Charger)
* UPS will charge itself even though power switch is off (Off mode charging)
* Over / under voltage protection (UPS will go to battery mode)
* Lightning / surge protection 175 joules
* UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
| CAPACITY | 600VA/360W | 800VA/480W |
|---|---|---|
| INPUT | ||
| Voltage | 220/230/240Vac | |
| Voltage Range | -30% +25% | |
| Frequency | 50Hz or 60Hz (Auto-Sensing) | |
| OUTPUT | ||
| Voltage Regulation | +/- 10% | |
| Frequency | AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode:50Hz or 60Hz +/- 1Hz | |
| Waveform | Simulated Sinewave | |
| Transfer Time | < 6ms(Typical) | |

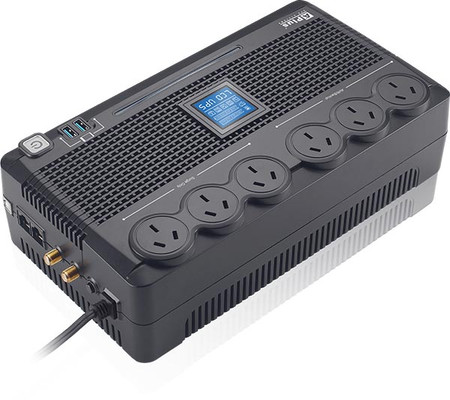

| Outlet: Australian | 3pcs with Back-up/AVR/Surge protected + 3pcs Surge protected only | |
| Coax-TV Protector (Optional) | 2 ports | |
| USB Charge (Optional) | 2 ports 5VDC, 2.4A Max. | |
| BATTERY | ||
| Type | Maintenance free sealed lead-acid battery | |
| Voltage | 12VDC | |
| Capacity & Number | 12V/7AH*1pc | 12V/9AH*1pc |
| Recharge Time | 5 hours to 90% after complete discharge | |
| Safety Protection | Over Charge & Over Discharge Protection | |
| Advanced Battery Management | Yes | |
| DISPLAY | ||
| LCD Status Indicators | Input voltage, Output voltage, Load level, Battery level, Fault, Battery fail, Overload, AC normal | |
| AUDIBLE ALARM | ||
| Battery Mode | Two short tones every 8 seconds | |
| Low Battery | Four short tones every second | |
| Overload | Buzzer: Beeping continuously | |
| Fault | Beeping continuously | |
| ENVIRONMENT | ||
| Operating Temperature | 0° C - 40° C (32℉~104℉) | |
| Humidity | 0-95% (Non-condensing) | |
| Acoustic Noise | <40 dB at 1M | |
| PHYSICAL | ||
| Dimension (D*W*H) | 320*175*95mm | |
